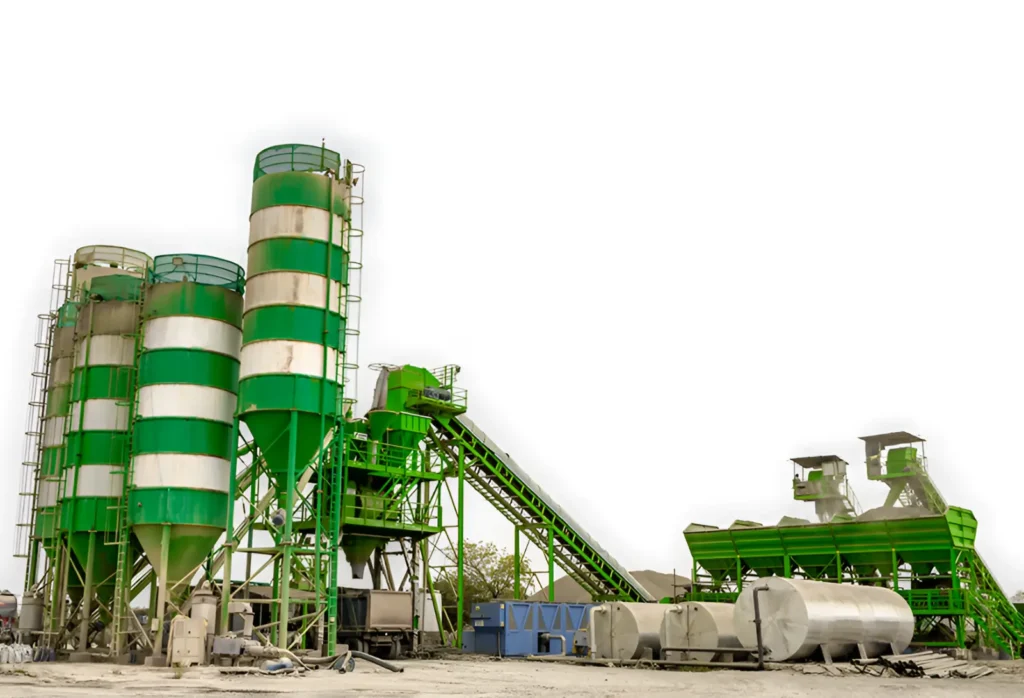

Concrete batch mix plant
Precision-Engineered Concrete Batch Plant for Quality Production
- Features of Concrete batch mix plant
- Automated Control System
- High-Quality Components
- Flexible Capacity Options
- Accurate Weighing and Batching
- Mobility and Scalability
- Environmental Compliance
- User-Friendly Operation
- Applications of Concrete batch mix plant
- Commercial and Residential Construction
- Road Construction and Pavements
- Infrastructure Projects
- Precast and Prefabricated Industries
- Mining and Heavy Industries
- Disaster Recovery and Emergency Construction
- Industrial and Commercial Pavements
- Specifications of Concrete batch mix plant
| Parameter | Specifications |
| Plant Capacity | 25 to 240 m³/hour (can vary based on model) |
| Batching Accuracy | ±1% for cement, ±2% for aggregates |
| Mixer Type | Twin-shaft mixer, planetary mixer, or drum mixer |
| Aggregate Storage | Multiple bins, typically 3-4, with individual weighers |
| Cement Storage | Silo with automated feeding system |
| Water System | Water weighing system with automatic control |
| Control System | Fully automatic PLC-based control panel |
| Weighing System | Electronic load cell-based weighing for precise batching |
| Discharge Height | Variable, typically 3-5 meters |
| Power Supply | 415V, 3-phase, or as per site requirements |
| Mobility | Stationary or mobile/ skid-mounted options |
| Dust Collection System | Bag filters or cyclones for environmental compliance |
| Water Recycling System | Optional, for reducing water consumption |
| Dimensions (L×W×H) | Varies based on capacity and configuration |
| Weight of Plant | Ranges from 10 tons (small units) to over 100 tons (large units) |
- Accessories of Concrete batch mix plant
| Accessory | Description | Purpose/Benefit |
| Cement Silos | Storage silos with automatic feeding systems | Ensures consistent cement supply, reduces handling time |
| Water Recycling System | Recycles excess water and washout materials | Reduces water consumption, environmental compliance |
| Dust Collection System | Bag filters, cyclones, or scrubbers to control dust emissions | Environmental protection and regulatory compliance |
| Aggregate Conveyor Belt | Additional conveyor systems for faster aggregate transfer | Enhances efficiency and reduces manual handling |
| Mobile/Skid-mounted Frame | Portable plant options for easy relocation | Suitable for site-specific or temporary projects |
| Automation System Upgrades | Advanced PLC, SCADA, or touchscreen control panels | Improves accuracy, monitoring, and ease of operation |
| Batching Software | Software for detailed batching control and reporting | Better management and documentation of operations |
| Vibration Feeders | For precise feeding of aggregates and cement | Ensures uniform flow and accurate batching |
| Cooling Systems | For controlling temperature of concrete in hot climates | Maintains concrete quality during high temperatures |
| Overhead Hoppers & Chutes | Additional hoppers for multiple ingredients | Enables multi-material batching with ease |
| Generator Sets | Power backup for plant operation during power failure | Ensures continuous production, especially in remote areas |
| Remote Operation Panels | Wireless or wired remote controls for plant operation | Enhances safety and operational convenience |
| Aggregate Pre-weighing System | Pre-measurement of aggregates before batching | Improves batching accuracy and efficiency |
