Cement Feeding System
Reliable Cement Feeding System and Construction Equipment Supplier Company
- Features of Cement Feeding System
- You have to make the arrangement to dump the cement in the powder form in to the feed hopper.
- Convey line is connected with high capacity blower to generate the sufficient force to convey the material into the storage silo.
- The system will have a facility to convey the loose cement/ fly ash which comes into the bulker.
- SAI SYSTEM CONTROL pre engineered screw pump and its components are ready for installation and require minimum attention for startup.
- Cement will be transferred inside the tubing without any obstruction to the Silo. The system proposed herein is totally enclosed and sealed.
- Applications of Cement Feeding System
- Highway and Expressway Construction
- Urban and Rural Road Projects
- Airport Runways and Taxiways
- Industrial and Commercial Parking Lots
- Real Estate and Township Roads
- Maintenance and Repair Works
- Bridge Approaches and Service Roads
- Specifications of Cement Feeding System
- Feed Hopper made of Mild steel having capacity of 500 Kg.
- Toughened Screw mounted on the heavy sturdy bearing blocks and complete with 30 HP 415 V ± 10% 50 Hz/3 Phase, Standard Make motor.
- Power Source package complete with positive displacement type roots blower made of Cl with 50 HP 415 V ±10%/50 Hz/3 Phase, Standard Make motor provided with safety guards, Non return Valve and pressure gauge.
- 4.0 Mtr Hose for further connection of pumping the material.
- Tapered Control Panel stand made of MS-Powder Coated with required necessary controls.
| SR NO | Item Description | specification |
| 1 | Output Capacity | 20 to 22 TPH |
| 2 | Feed Hoper Capacity | 500 KG |
| 3 | Screw | Tougned |
| 4 | Screw Motor | 30 HP/1450 RPM 50 HZ |
| 5 | Twin Lobe Blower | DFS-022 |
| 6 | Blower Motor | 50 HP/1450 RPM 50HZ |
| 7 | Structure | Fixed |
- Accessories of Cement Feeding System
| Suction Silencer | Discharge Silencer |
| "V" Belt Set | Spring Loaded safety Valve |
| "V" Belt Guard | Pressure Gauge |
| Suction Filter | "V" Pulley Set |
| Non Return Valve |
- TECHNICAL BID of Cement Feeding System

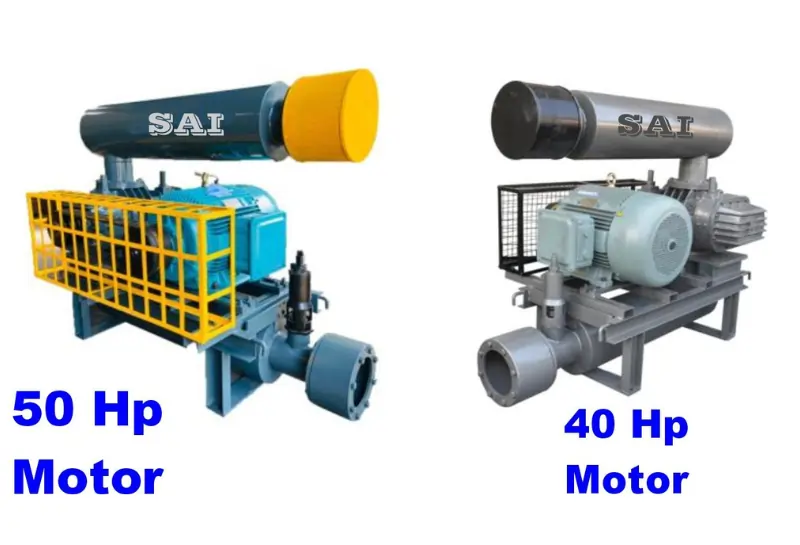

| MODEL | 50 Hp. Twin Lobe Blower With Motor for Bulker unloading unit |
| CONSTRUCTION | CI |
| COOLING | AIR COOLED |
| CAPACITY | 680 M3/HR |
| PRESSURE | 0.9 KG/CM2 |
| SPEED | 1850 RPM |
| REC.MOTOR | 50 HP / 1450 RPM |
| DRIVE | V" BELT DRIVE |
| FLOW | HORIZONTAL FLOW |
| PRICE FOR ROOTS BLOWER | USD = $ 30,500 |
| 50 HP ELECTRIC MOTOR | INCLUDING |
| 50 HP CONTROL PANEL WITH CABLE | INCLDUING |
| RUBBER HOSE PIPE SET | INCLDUING |
- MACHINE OF CONSTRUCTION
| ROTOR PAIR | SG IRON |
| CASING ( BODY ) | CI - IS 210 FG 260 |
| COVERS | CI - IS 210 FG 260 |
| OUTER COVERS | CI - IS 210 FG 260 |
| GEAR PAIR | Alloy steel / Hardened & Ground |
| BEARINGS | ZKL / SKF |
- ACCESSORIES INCLUDING
| Base frame with slide rail | Suction silencer |
| Discharge silencer | Suction filter |
| Belt guard | Pressure gauge |
| Pulleys for blower and motor | Non return valve |
| Belt set | Pressure safety valve |
