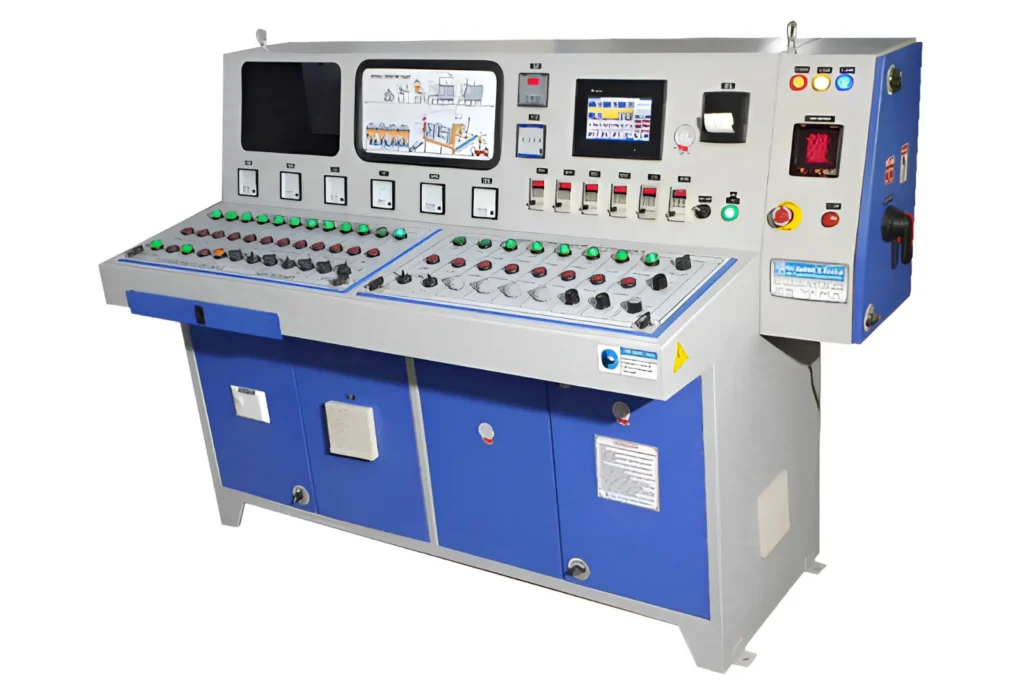

Hot Mix Plant Control Panel
Automated Hot Mix Plant Control Panel for Accurate Material Weighing and Mixing
-
Features of Hot Mix Plant Control
Panel
- Automated Batching and Mixing
- Temperature Control System
- Real-Time Monitoring and Display
- User-Friendly Interface
- Data Logging and Reports
- Alarm and Safety Features
- Remote Access and Control
- Applications of Hot Mix Plant Control Panel
- Asphalt Batch Mixing Plants
- Continuous Mixing Plants
- Road Construction Projects
- Recycling and Waste Management
- Quality Control and Testing Facilities
- Research and Development
- Industrial Production Lines
- Specifications of Hot Mix Plant Control Panel
| Parameter | Specification |
| Control System | PLC (Programmable Logic Controller) or SCADA |
| Display | Touch Screen LCD / HMI (Human Machine Interface), 7-15 inches |
| Power Supply | 220V / 380V, 3-phase, 50Hz / 60Hz |
| Input Voltage Range | ±10% of rated voltage |
| Control Modes | Automatic, Manual, Semi-automatic |
| Temperature Range | Ambient: -10°C to +50°C; Temperature sensors measuring up to 300°C |
| Communication Protocols | Ethernet, RS485, Profibus, Modbus RTU/TCP |
| Protection Class | IP65 / IP54 (dust and water resistant) |
| Power Consumption | Varies (typically 200W - 1kW depending on features) |
| Data Logging | Yes, with USB/SD card or network storage |
| Alarm & Warning System | Audible & visual alerts for system faults |
| Safety Features | Emergency stop, overload protection, fault detection |
| Connectivity | Integration with plant sensors, feeders, and other automation systems |
| Enclosure Material | Powder-coated steel / stainless steel |
| Dimensions | Customizable based on installation requirements |
| Operating Environment | Temperature: 0°C to 50°C; Humidity: Up to 90% RH |
- Accessories of Hot Mix Plant Control Panel
| Accessory | Description | Purpose |
| Emergency Stop Button | Red push-button for immediate shutdown in emergencies | Safety assurance |
| Temperature Sensors (Thermocouples) | Sensors for monitoring asphalt and aggregate temperatures | Accurate temperature control |
| Data Logger/USB Drive | External device for data storage | Record keeping, quality analysis |
| Printer | For printing reports, process logs | Documentation and quality control |
| Remote Monitoring Module | Wireless or wired modules for remote system access | Monitoring and control from a distance |
| Voltage Stabilizer | Ensures consistent power supply | Protects control panel and sensors |
| Overload Protection Devices | Circuit breakers or fuses | Electrical safety |
| Filter and Dust Cover | Enclosure filters for dust and debris | Protects internal components |
| Interface Cables & Connectors | Connecting cables for sensors, actuators, and communication devices | System connectivity |
| Backup Battery (UPS) | Uninterruptible Power Supply for continuous operation | Prevent data loss during power failure |
| Touch Screen Protector | Screen guard to prevent damage | Maintains display clarity |
| Cooling Fan or Ventilation | For heat dissipation | Protects electronics from overheating |
| Signal Lamps/Indicators | Visual indicators for system status, alarms | Quick system status assessment |
| Software License/Update Kit | Software updates and licenses for system enhancement | Keeps system up-to-date |
